Molecular scanner는 실시간 등온증폭검출기기로서, 하나의 플랫폼으로 다양한 질병을 확인하고 검출할 수 있습니다.
4형광 8채널로서 multiplexing이 가능하며 well 별로 개별 동작이 가능하므로 응급 환자 발생시 즉각적으로 가능합니다.
등온증폭시약을 이용하므로 검사시간이 매우 빠르고, 기존 real-time PCR 기기에 비해 작고 가벼워 응급실, 공항, 항만 등에서 효과적으로 사용 가능합니다.
ITEM | Specification | ||
Sample Capacity | 8 wells (4 blocks x 2 wells) | ||
Heating Device | Ceramic Heater | ||
Temperature control range | 30 ~ 95℃ | ||
Temperature accuracy | ±0.5℃ | ||
Excitation Light Source | 1 x Power White LED | ||
Detection Device | 4 x PD(Photo Diode) | ||
Wavelength (4-Multiplexing) |
Fluorescence Dye | Excitation | Emission |
FAM/SYBR | 450-490nm | 510-530nm | |
Cy5 | 620-650nm | 675-690nm | |
HEX | 515-535nm | 560-580nm | |
Texas Red | 560-590nm | 610-650nm | |
Input Power | AC 100-240V, 50-60Hz | ||
Control type | 개별 block 제어 (광원, 온도제어, Photo Detector) | ||
Display | 8” TFT Color LCD with TSP(Touch Screen Panel) | ||
Data export/connect | 1 x USB port | ||

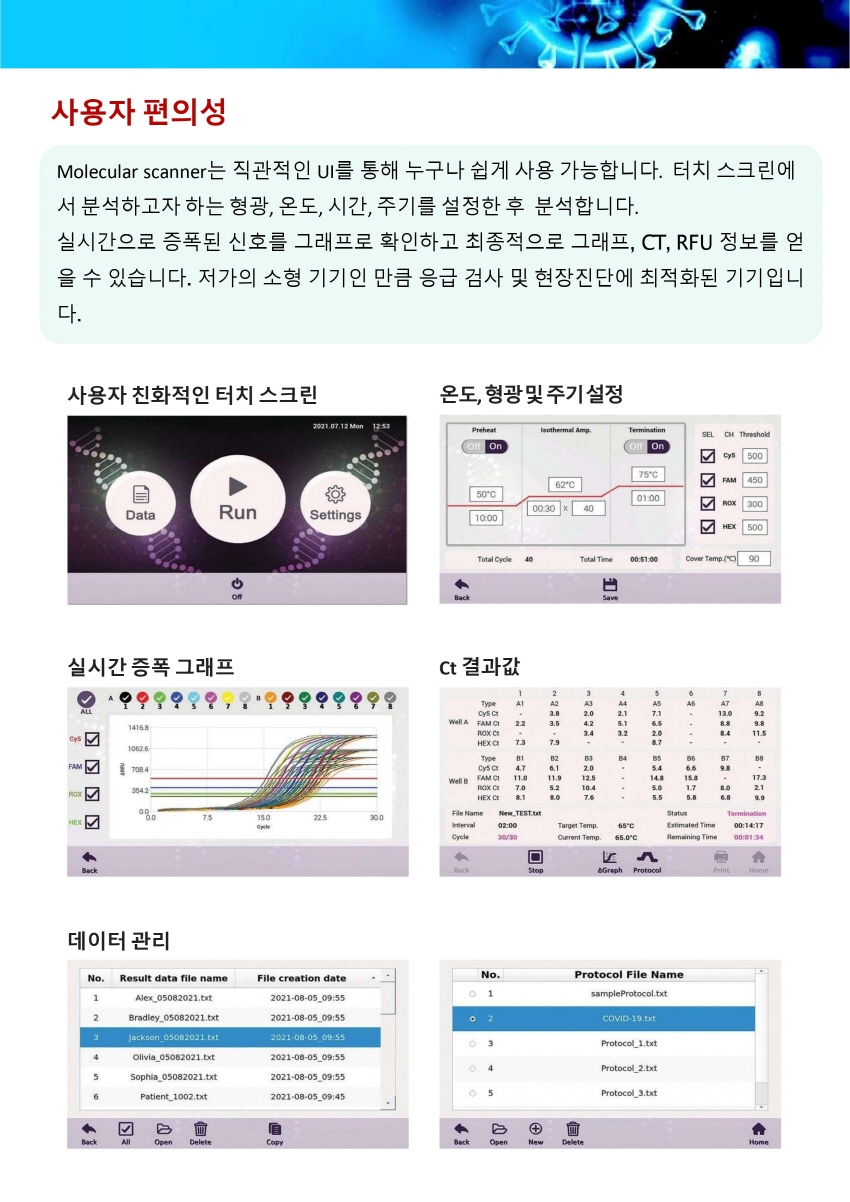

Analysis Software (PC) | CT value와 Graph 변화 확인 Protocol 저장 및 Excel export Graph image file export 기능(GIF or JPEG) |
