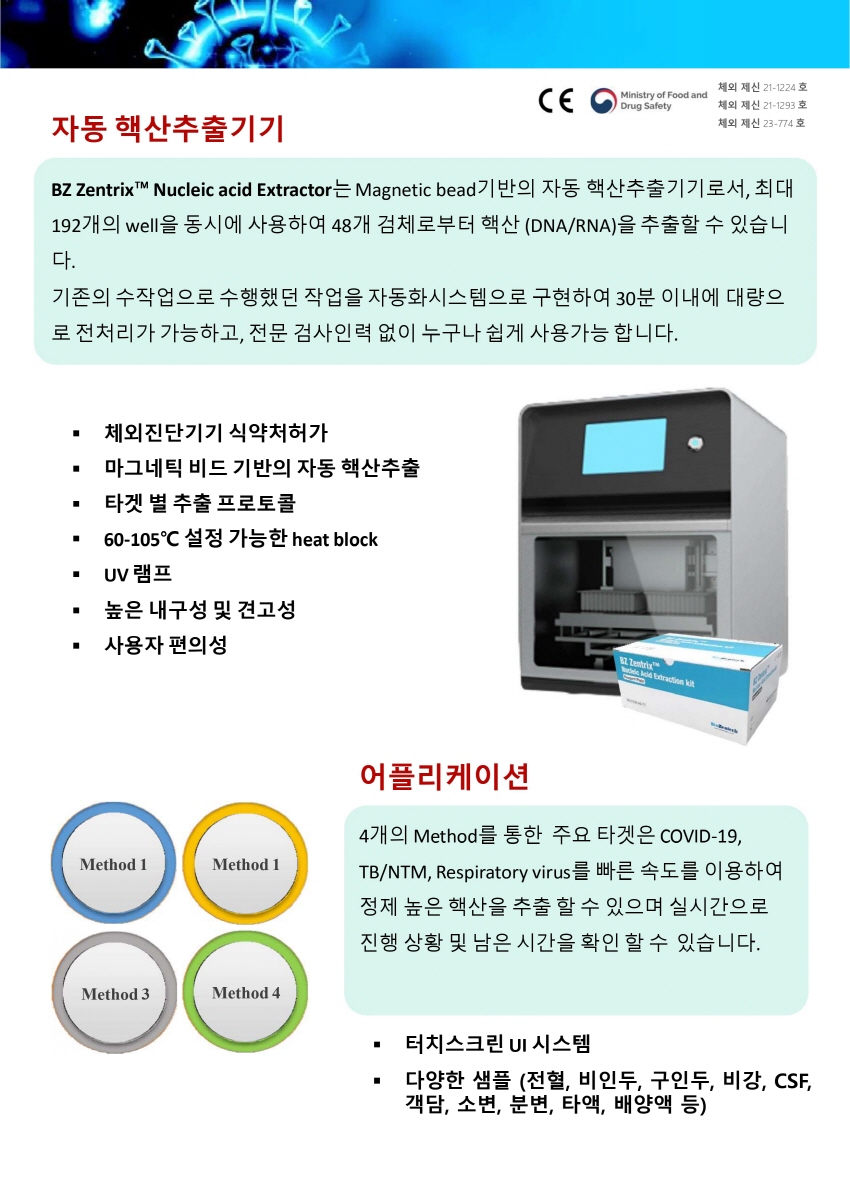

BZ Zentrix™ Nucleic acid Extractor는 Magnetic bead기반의 자동 핵산추출기기로서, 최대 192개의 well을 동시에 사용하여 48개 검체로부터 핵산 (DNA/RNA)을 추출할 수 있습니다.
기존의 수작업으로 수행했던 작업을 자동화시스템으로 구현하여 30분 이내에 대량으로 전처리가 가능하고, 전문 검사인력 없이 누구나 쉽게 사용가능 합니다.

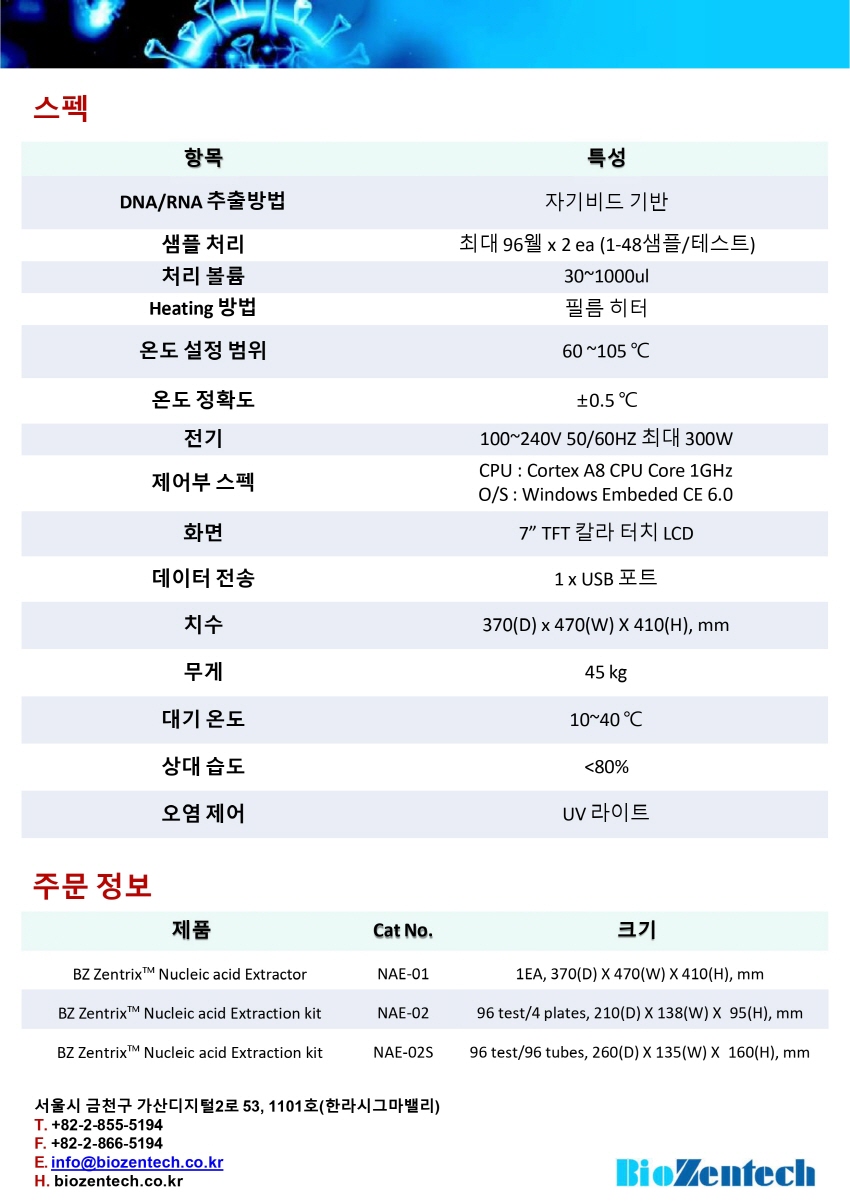

DNA/RNA Extraction Method | Magnet Beads Method |
Sample Capacity | 192 wells (96 well x 2 ea) / 1-48 samples per run |
Processing Volume | 30~1000μℓ |
Heating Device | Film Heater |
Temperature control range | 60 ~105 ℃ |
Temperature accuracy | ±0.5 ℃ |
Input Power | 100~240V 50/60HZ Maximum 300W |
Control Specification |
CPU : Cortex A8 CPU Core 1GHz O/S : Windows Embeded CE 6.0 |
Display | 7” TFT Color Touch LCD |
Data export/connect | 1 x USB port |
Dimensions | 370(D) x 470(W) X 530(H), mm |
Weight | 45 kg |
Ambient Temperature | 10~40 ℃ |
Relative Humidity | <80% |
Pollution Control | UV light |
